R-Series High Vacuum Dia-Vac® Pump Hazardous

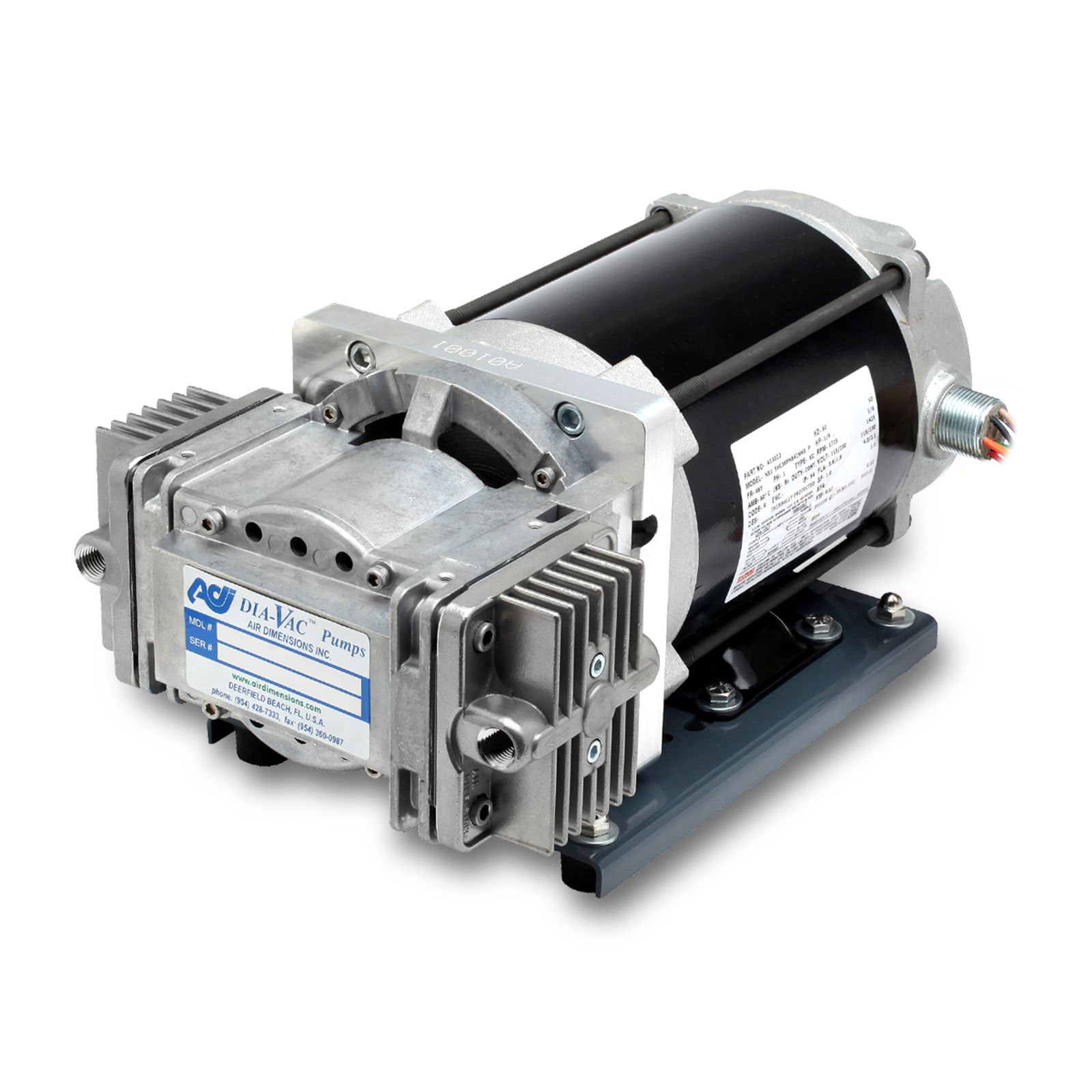

The R-Series High-Vacuum Dia-Vac® pump is an adaptation of our versatile R-Series Dia-Vac® pump, using valves specifically designed for vacuum applications. This pump is highly customizable and can be modified to work with almost any application.

With an absolute vacuum of -29.8 in Hg, this pump can handle all of your vacuum needs.

ADI’s gas sampling Dia-Vac® Pumps can pass your gas at the speed of need! Due to an increased interest in reducing the pressure, vacuum and/or flow on the Dia-Vac® pumps, our engineers designed a modified eccentric design. This allows you to customize your Dia-Vac® pump to meet your application requirements while at the same time increasing the diaphragm and bearing life. The standard eccentric size for the R-Series Dia-Vac® is 0.222. Please note that the chart below is not meant to be read as a combination of pressure and vacuum at the same time, only pressure or vacuum.

R-Series Single Head Dia-Vac®

Flow Averages

Para/Series**

(Please click on individual Model # for actual performance curves)

Model #	PSIG (Max Pressure)	Bar Gauge (Max Pressure)	InHg Gauge (Ultimate Vacuum)	Mbar Gauge (Ultimate Vacuum)	SCFM (Max Flow)	SLPM (Max Flow)
R061	6.1	0.42	8.4	284	0.33	9.4	R061.pdf
R061- Metric							R061_metric.pdf
R081	9.6	0.66	11.8	399	0.47	13.2	R081.pdf
R081- Metric							R081_metric.pdf
R101	11	0.75	13.9	470	0.47	13.4	R101.pdf
R101- Metric							R101_metric.pdf
R121	17	1.17	16	541	0.57	16.4	R121.pdf
R121- Metric							R121_metric.pdf
R151	22	1.52	18.8	636	0.66	18.9	R151.pdf
R151- Metric							R151_metric.pdf
R181	34.2	2.36	21.4	725	0.77	21.8	R181.pdf
R181- Metric							R181_metric.pdf
R201	45.1	3.11	22.6	765	0.86	24.5	R201.pdf
R201- Metric							R201_metric.pdf
R221	55	3.8	24	813	0.95	27	R221.pdf
R221- Metric							R221_metric.pdf
R251	71	4.9	24.6	833	0.98	27.8	R251.pdf
R251- Metric							R251_metric.pdf
R271	71	4.9	25.2	853	1.06	30.2	R271.pdf
R271- Metric							R271_metric.pdf

R-Series Double Head Dia-Vac®

Flow Averages

Para/Series**

(Please click on individual Model # for actual performance curves)

Model #	PSIG (Max Pressure)	Bar Gauge (Max Pressure)	InHg Gauge (Ultimate Vacuum)	Mbar Gauge (Ultimate Vacuum)	SCFM (Max Flow)	SLPM (Max Flow)
R202-60Hz	46.5/75.0	3.20/5.17	23.3/28.3	789/958	1.71/1.01	48.5/28.7	R202-60-Hz.pdf
R202-60Hz-Metric							R202-60_Metric.pdf
R202-50Hz							R202-50-Hz.pdf
R202-50Hz-Metric							R202-50_Metric.pdf
R222-60Hz	55.0/75.0	3.79/5.17	24.0/28.6	812/968	1.80/0.98	51.1/27.8	R222-60-Hz.pdf
R222-60Hz-Metric							R222-60_Metric.pdf
R222-50Hz							R222-50-Hz.pdf
R222-50Hz-Metric							R222-50_Metric.pdf
R252-60Hz	69.8/75.0	4.81/5.17	25.1/28.9	850/978	2.06/1.12	58.4/31.8	R252-60-Hz.pdf
R252-60Hz-Metric							R252-60_metric.pdf
R252-50Hz							R252-50-Hz.pdf
R252-50Hz-Metric							R252-50_metric.pdf
R272-60Hz	75.0/75.0	5.17/5.17	25.3/29.2	856/988	2.37/1.24	67/35	R272-60-Hz.pdf
R272-60Hz-Metric							R272-60_metric.pdf
R272-50Hz							R272-50-Hz.pdf
R272-50Hz-Metric							R272-50_metric.pdf

R-Series Quad Head Dia-Vac®

Flow Averages

Para/Series**

(Please click on individual Model # for actual performance curves)

Model #	PSIG (Max Pressure)	Bar Gauge (Max Pressure)	InHg Gauge (Ultimate Vacuum)	Mbar Gauge (Ultimate Vacuum)	SCFM (Max Flow)	SLPM (Max Flow)
R224-60Hz	70/75	4.80/5.17	24.8/29.4	839/995	3.53/0.98	100/27.8	R224-60-Hz.pdf
R224-60Hz-Metric							R224-60Hz_metric.pdf
R224-60Hz-Metric-Deep-Vac							R224-60Hz-DV_metric.pdf
R224-50Hz							R224-50-Hz.pdf
R224-50Hz-Metric							R224-50Hz_metric.pdf
R224-50Hz-Metric-Deep-Vac							R224-50Hz-DV_metric.pdf
R254-60Hz	75.0/75.0	5.17/5.17	24.9/29.4	839/995	3.8/1.1	108/31.4	R254-60-Hz.pdf
R254-60Hz-Metric							R254-60Hz_metric.pdf
R254-60Hz-Metric-Deep-Vac							R254-60Hz-DV_metric.pdf
R254-50Hz							R254-50-Hz.pdf
R254-50Hz-Metric							R254-50Hz_metric.pdf
R254-50Hz-Metric-Deep-Vac							R254-50Hz-DV_metric.pdf

**Head Connection Schematics

drawing

parts

instructions

drawing

parts

instructions

R-SeriesXP Brochure

CAPACITY	WETTED MATERIALS	MOTOR	OPTIONS
STYLE	ECC.	HEADS	HEAD	DIAPHRAGM	TYPE	VOLTS	Hz	OPTIONS
B=Standard	27	1	A=Alum	E=Encap Tef/EPDM*	D=Air	A=115	0= N/A	• A=416ss Valve Discs
	25	2	B=Tef/Alum	N=EPDM	N=XP(Gr CD) 1/2 HP	B=230	1=60 1Ph	• D=Double Diaphragm
	22	4	F=316ss	P=All Teflon	Q=ATEX/IECEx (IIC) .55kW	D=220/380	2=50 1Ph	• E2=Extended Head
	20	8	G=316ss (TefCo)	T=Tef/EPDM	R=XP Gr.B,C,D (UL) 1/6 HP	E=230/460	3=60 3Ph	• L=Elevated Head
	18		H=Hastelloy C	V=Viton	V=XP (C,D) 1HP	X=N/A	4=50 3Ph	• P=Epoxy coatfor offshore
	15		J=Hast. C (TefCo)		Y=ATEX/IECEx (IIC) .37kW			• M8=Heated Steam (XP)
	12		L=Silconert®316ss					• X=Rotate Housing 90° CW
	10		P=Electro Polish					• Y=Rotate Housing 90° CCW
	08		T=Solid Teflon					• Z=Rotate Housing 180°
	06

R-Series High Vacuum Dia-Vac® Pump (Hazardous Area)

R-Series Hi-Vac Performance

R-Series Single Head Dia-Vac®

R-Series Double Head Dia-Vac®

R-Series Quad Head Dia-Vac®

Double Head UL/CSA Explosion Proof

drawing

parts

instructions

Quad Head UL/CSA Explosion Proof

drawing

parts

instructions

Downloads

R-SeriesXP Brochure

How to Order
