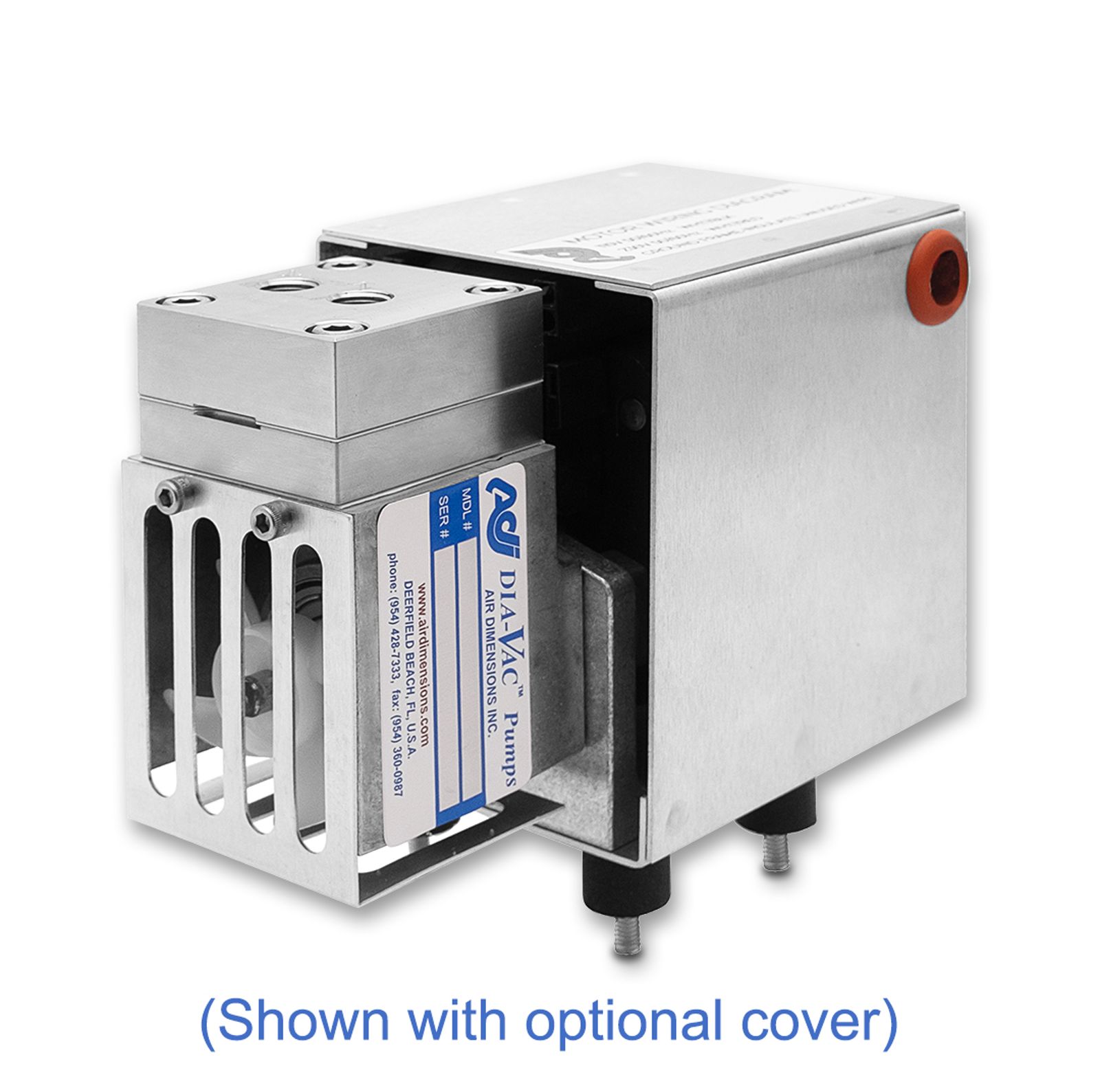

B-Series Dia-Vac® Performance
ADI’s gas sampling Dia-Vac® Pumps can pass your gas at the speed of need! Due to an increased interest in reducing the pressure, vacuum, and/or flow on the Dia-Vac® pumps, our engineers designed a modified eccentric design.
This allows you to customize your Dia-Vac® pump to meet your application requirements while at the same time increasing the diaphragm and bearing life. The standard eccentric size is 0.160 on the B-Series Dia-Vac® Pump.
Please note that the chart below is not meant to be read as a combination of pressure and vacuum at the same time, only pressure or vacuum.
B-Series Dia-Vac®
Flow Averages
(Please click on individual Model # for actual performance curves)
Model # | PSIG (Max Pressure) | Bar Gauge (Max Pressure) | InHg Gauge (Ultimate Vacuum) | Mbar Gauge (Ultimate Vacuum) | SCFM (Max Flow) | SLPM (Max Flow) |
|
|---|---|---|---|---|---|---|---|
B081 | 8.5 | 0.59 | 14.9 | 505 | 0.138 | 3.9 | |
B081- Metric |
|
|
|
|
|
| |
B101 | 12.9 | 0.89 | 17.4 | 589 | 0.155 | 4.4 | |
B101- Metric |
|
|
|
|
|
| |
B121 | 18.1 | 1.25 | 20.2 | 684 | 0.2 | 5.7 | |
B121- Metric |
|
|
|
|
|
| |
B141 | 23.4 | 1.61 | 21.4 | 725 | 0.24 | 6.8 | |
B141- Metric |
|
|
|
|
|
| |
B161 | 29.2 | 2.01 | 23 | 778 | 0.268 | 7.6 | |
B161- Metric |
|
|
|
|
|
| |
B162- Metric |
|
|
|
|
|
|
