ADI’s gas sampling Dia-Vac® Pumps can pass your gas at the speed of need! Due to an increased interest in reducing the pressure, vacuum and/or flow on the Dia-Vac® pumps, our engineers designed a modified eccentric design. This allows you to customize your Dia-Vac® pump to meet your application requirements while at the same time increasing the diaphragm and bearing life.
Please note that the chart below is not meant to be read as a combination of pressure and vacuum at the same time, only pressure or vacuum.

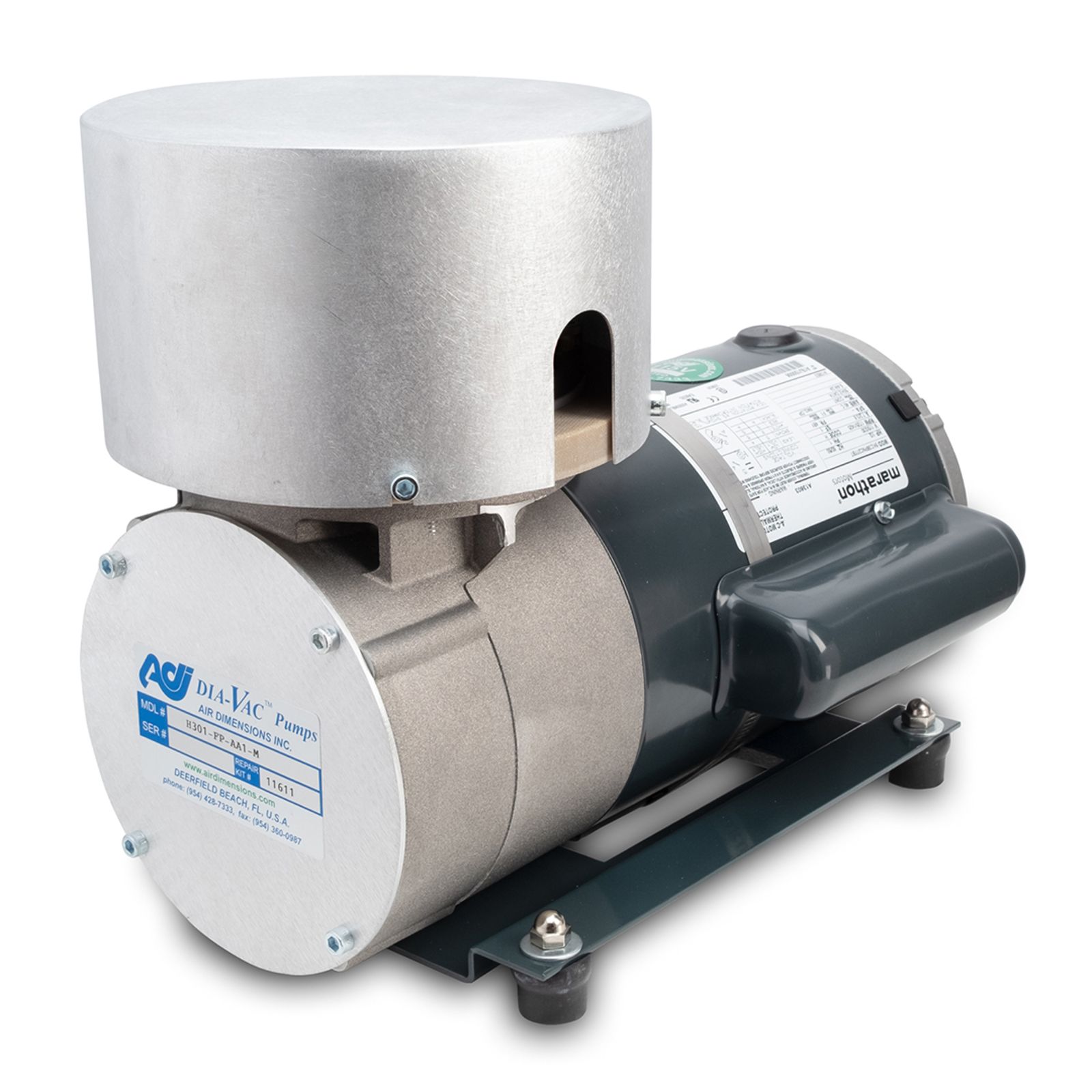

H-Series Dia-Vac®
Flow Averages
(Please click on individual Model # for actual performance curves)
| Model # | PSIG (Max Pressure) | Bar Gauge (Max Pressure) | InHg Gauge (Ultimate Vacuum) | Mbar Gauge (Ultimate Vacuum) | SCFM (Max Flow) | SLPM (Max Flow) | |
|---|---|---|---|---|---|---|---|
| H301 | 60 | 4.13 | 26.7 | 904 | 1.45 | 41.1 | H301.pdf |
| H301-Metric | H301_Metric.pdf | ||||||
| H302-60Hz | 30/30 | 4.13/4.13 | 27.1/29.5 | 917.0/999 | 2.94/1.53 | 83.3/43.4 | H302-60-HZ.pdf |
| H302-60Hz-Metric | H302-60-hertz_Metric-1.pdf | ||||||
| H302-50Hz | H302-50-HZ-1.pdf | ||||||
| H302-50Hz-Metric-(Parallel/Series) | H302-50-hertz_Metric.pdf |
