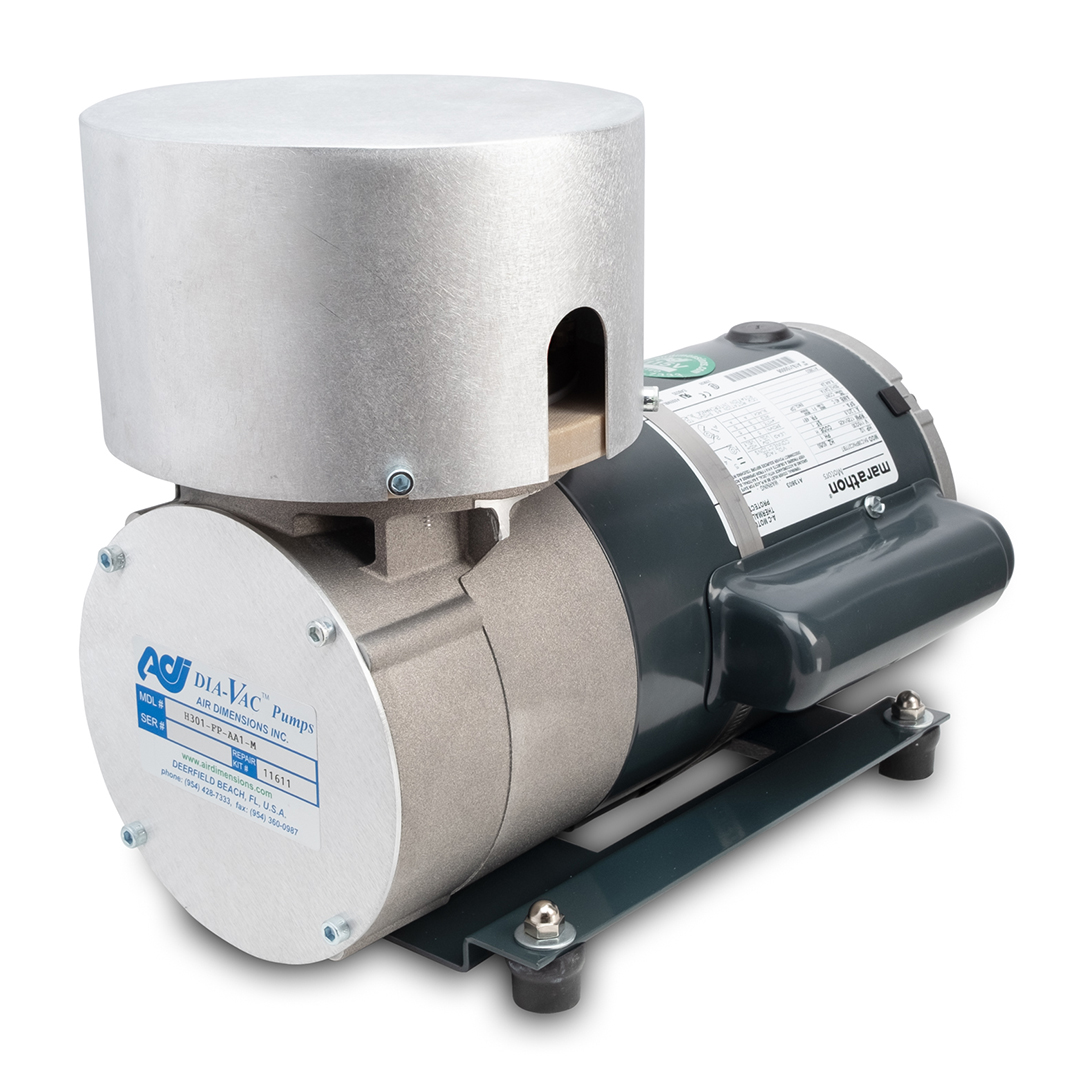

H-Series Dia-Vac® Pump Heated Head

The H-Series Heated Head Dia-Vac® pump provides all of the excellent features of the standard H-Series Dia-Vac® pump but has the added ability to electrically heat the pump head chamber to keep the gas temperature above the dew point.

This is an ideal pump for hot/wet extraction systems required to precisely control the temperature of the gas all the way through the pump and into the gas analyzer, up to 200°C. The head is made from 316 stainless steel and equipped with (2) 75 watt cartridge heaters and a K-type thermocouple, fixed thermostat or PT100 RTD.

*Note that the thermocouple and RTD options require an external temperature controller (sold separately).

ADI’s gas sampling Dia-Vac® Pumps can pass your gas at the speed of need! Due to an increased interest in reducing the pressure, vacuum and/or flow on the Dia-Vac® pumps, our engineers designed a modified eccentric design. This allows you to customize your Dia-Vac® pump to meet your application requirements while at the same time increasing the diaphragm and bearing life.

Please note that the chart below is not meant to be read as a combination of pressure and vacuum at the same time, only pressure or vacuum.

H-Series Dia-Vac®

Flow Averages

(Please click on individual Model # for actual performance curves)

Model #	PSIG (Max Pressure)	Bar Gauge (Max Pressure)	InHg Gauge (Ultimate Vacuum)	Mbar Gauge (Ultimate Vacuum)	SCFM (Max Flow)	SLPM (Max Flow)
H301	60	4.13	26.7	904	1.45	41.1	H301.pdf
H301-Metric							H301_Metric.pdf
H302-60Hz	30/30	4.13/4.13	27.1/29.5	917.0/999	2.94/1.53	83.3/43.4	H302-60-HZ.pdf
H302-60Hz-Metric							H302-60-hertz_Metric-1.pdf
H302-50Hz							H302-50-HZ-1.pdf
H302-50Hz-Metric-(Parallel/Series)							H302-50-hertz_Metric.pdf

drawing

parts

instructions

drawing

parts

instructions

H Series Brochure

CAPACITY	WETTED MATERIALS	MOTOR	OPTIONS
STYLE	ECC.	HEADS	HEAD	DIAPHRAGM	TYPE	VOLTS	Hz	OPTIONS
H=H-Series	30	1	F=316ss	T= Teflon/EPDM	A= General Purpose	A=115	1=60 1Ph	• L= Elevated Head (1 Hd. Only)
		2		P=All Teflon	C= TEFC	B=230	2=50 1Ph	• M= Heated Hd. w/Thermocouple
					F= XP/ATEX/IIC			• M2= 65°C Thermostat
					G= XP/ATEX/IIC			• M3= 100°C Thermostat
					N= XP (Grp CD UL)			• M4= 140°C Thermostat
					R= XP (Grp BCD UL)*			• M5= 163°C Thermostat
								• M6= 200°C Thermostat
					*H301 only.
