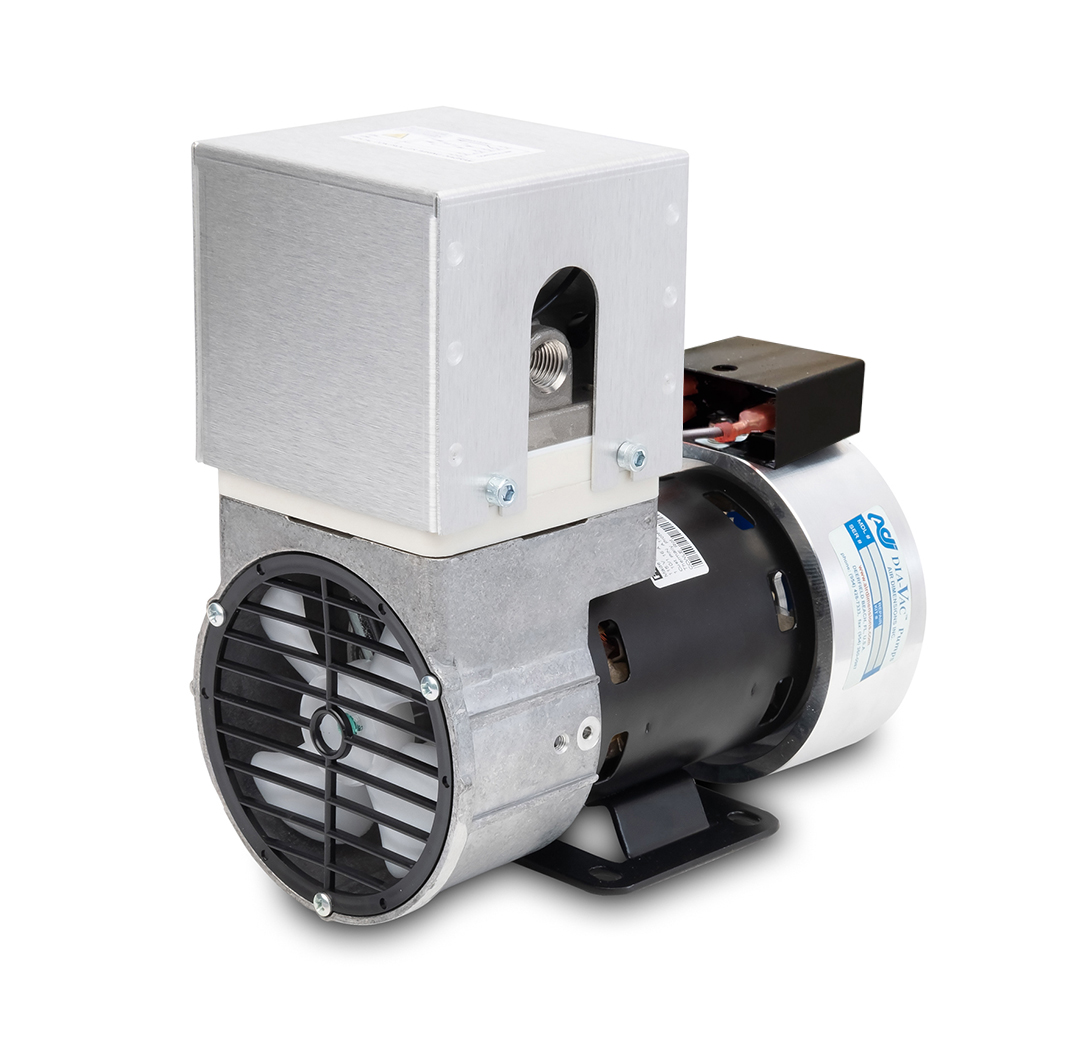

M-Series Dia-Vac® Pump Single Head Heated

The M-Series Heated Head Dia-Vac® pump provides all of the excellent features of the standard M-Series Dia-Vac® pump but has the added ability to electrically heat the pump head chamber to keep the gas temperature above the dew point.

This is an ideal pump for hot/wet extraction systems required to precisely control the temperature of the gas all the way through the pump and into the gas analyzer, up to 200°C. The head is made from 316 stainless steel and equipped with (2) 75 watt cartridge heaters and a K-type thermocouple, fixed thermostat or PT100 RTD.

*Note that the thermocouple and RTD options require an external temperature controller (sold separately).

ADI’s gas sampling Dia-Vac® Pumps can pass your gas at the speed of need! Due to an increased interest in reducing the pressure, vacuum, and/or flow on the Dia-Vac® pumps, our engineers designed a modified eccentric design.

This allows you to customize your Dia-Vac® pump to meet your application requirements while at the same time increasing the diaphragm and bearing life. The standard eccentric size is 0.160 on the M-Series Dia-Vac® Pump. Please note that the chart below is not meant to be read as a combination of pressure and vacuum at the same time, only pressure or vacuum.

M-Series Dia-Vac®

Flow Averages

(Please click on individual Model # for actual performance curves)

Model#	PSIG (Max Pressure)	Bar Gauge (Max Pressure)	InHg Gauge (Ultimate Vacuum)	Mbar Gauge (Ultimate Vacuum)	SCFM (Max Flow)	SLPM (Max Flow)
M081	6	0.41	7	237	0.42	12	M081.pdf
M081- Metric							M081_Metric.pdf
M101	17	1.17	17	575	0.49	14	M101.pdf
M101- Metric							M101_Metric.pdf
M121	19	1.31	18	609	0.59	16.8	M121.pdf
M121- Metric							M121_Metric.pdf
M151	29.1	2	19.7	667	0.7	20	M151.pdf
M151- Metric							M151_Metric.pdf
M161	35	2.41	20.7	701	0.75	21.4	M161.pdf
M161- Metric							M161_Metric.pdf
M162 (Para)	35	2.41	21	711	1.3	39	M162-Parallel-Combo-Curve.pdf
M162- Metric							M162_Metric.pdf

Head Connection Schematics

drawing

parts

instructions

M Series Brochure

CAPACITY	WETTED MATERIALS	MOTOR	OPTIONS
STYLE	ECC.	HEADS	HEAD	DIAPHRAGM	TYPE	VOLTS	Hz	OPTIONS
M=M-Series	16	1	A=Alum	E=Encap Tef/EPDM*	C=Gen. Purpose	A=115 AC	0= N/A	• L=Elevated Head
	15	2	B=Tef/Alum	N=EPDM	W=XP Div.2	B=230 AC	1=60 1Ph	• M=Heated w/K Thermocouple
	14		F=316ss	P=All Teflon	Z=ATEX Zone 2 IIC	X=N/A	2=50 1 Ph	• M1=Heated w/RTD M2=Heated 65° T-stat
	12		G=316ss (TefCo)	T=Tef/EPDM				• M3=Heated 100° T-stat
	10		H=Hastelloy C					• M4=Heated 140° T-stat
	8		J=Hast. C (TefCo)					• M5=Heated 163° T-stat
			L=Silconert®316ss					• M6=Heated 200° T-stat
			T=Solid Teflon
			P=Electro Polish
				*Teflon Head Only
