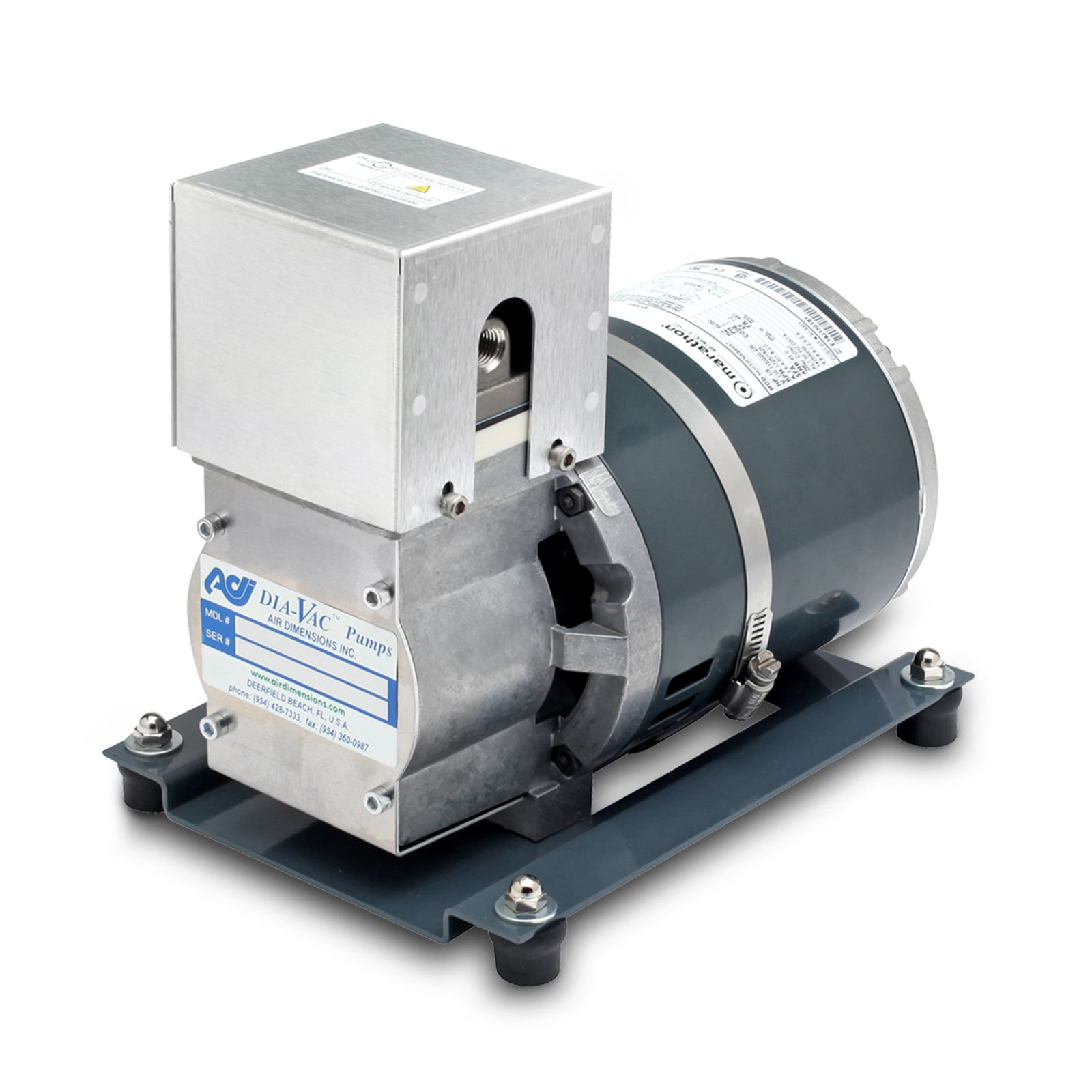

R-Series Heated Head Dia-Vac® Pump

Product Description

The R-Series Heated Head Dia-Vac® pump provides all of the excellent features of the standard R-Series Dia-Vac® pump but has the added ability to electrically heat the pump head chamber to keep the gas temperature above the dew point.

This is an ideal pump for hot/wet extraction systems required to precisely control the temperature of the gas all the way through the pump and into the gas analyzer, up to 200°C. The head is made from 316 stainless steel and equipped with (2) 75 watt cartridge heaters and a K-type thermocouple, fixed thermostat or PT100 RTD.

*Note that the thermocouple and RTD options require an external temperature controller (sold separately).

R-Series Performance

Single Head

Double Head


How to order
