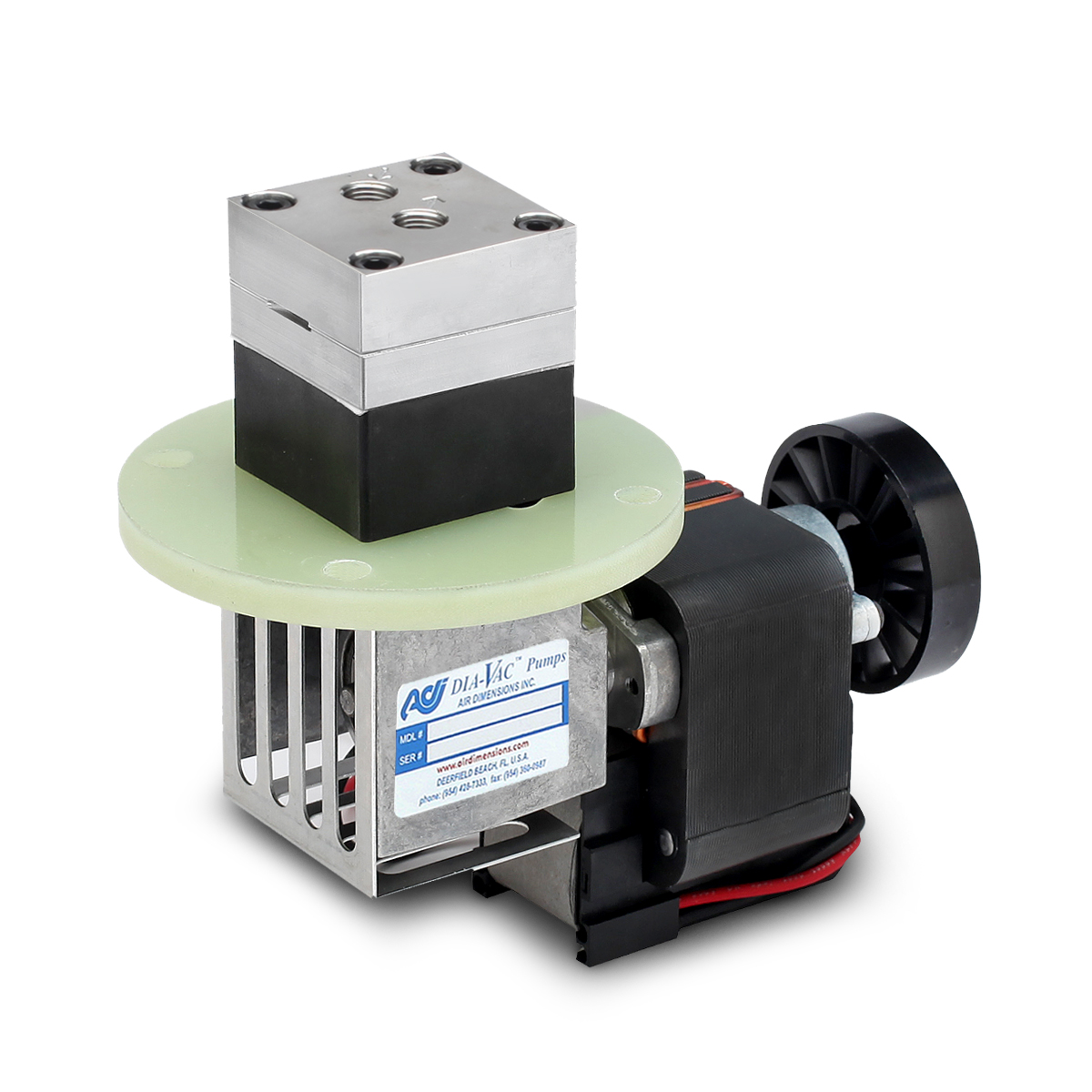

B-Series Dia-Vac® Performance
ADI’s gas sampling Dia-Vac® Pumps can pass your gas at the speed of need! Due to an increased interest in reducing the pressure, vacuum, and/or flow on the Dia-Vac® pumps, our engineers designed a modified eccentric design.
This allows you to customize your Dia-Vac® pump to meet your application requirements while at the same time increasing the diaphragm and bearing life. The standard eccentric size is 0.160 on the B-Series Dia-Vac® Pump.
Please note that the chart below is not meant to be read as a combination of pressure and vacuum at the same time, only pressure or vacuum.
B-Series Dia-Vac®
Flow Averages
(Please click on individual Model # for actual performance curves)
| Model # | PSIG (Max Pressure) | Bar Gauge (Max Pressure) | InHg Gauge (Ultimate Vacuum) | Mbar Gauge (Ultimate Vacuum) | SCFM (Max Flow) | SLPM (Max Flow) | |
|---|---|---|---|---|---|---|---|
| B081 | 8.5 | 0.59 | 14.9 | 505 | 0.138 | 3.9 | B081.pdf |
| B081- Metric | B081_metric.pdf | ||||||
| B101 | 12.9 | 0.89 | 17.4 | 589 | 0.155 | 4.4 | B101.pdf |
| B101- Metric | B101_metric.pdf | ||||||
| B121 | 18.1 | 1.25 | 20.2 | 684 | 0.2 | 5.7 | B121.pdf |
| B121- Metric | B121_metric.pdf | ||||||
| B141 | 23.4 | 1.61 | 21.4 | 725 | 0.24 | 6.8 | B141.pdf |
| B141- Metric | B141_metric.pdf | ||||||
| B161 | 29.2 | 2.01 | 23 | 778 | 0.268 | 7.6 | B161.pdf |
| B161- Metric | B161.pdf | ||||||
| B162 (Para/Series) | 34.3 / NA | 2.36 / NA | 22.2 / 27.5 | 752 / 931 | 0.45 / 0.26 | 12.6 / 6.4 | B162.pdf |
| B162- Metric | B162_metric.pdf |
